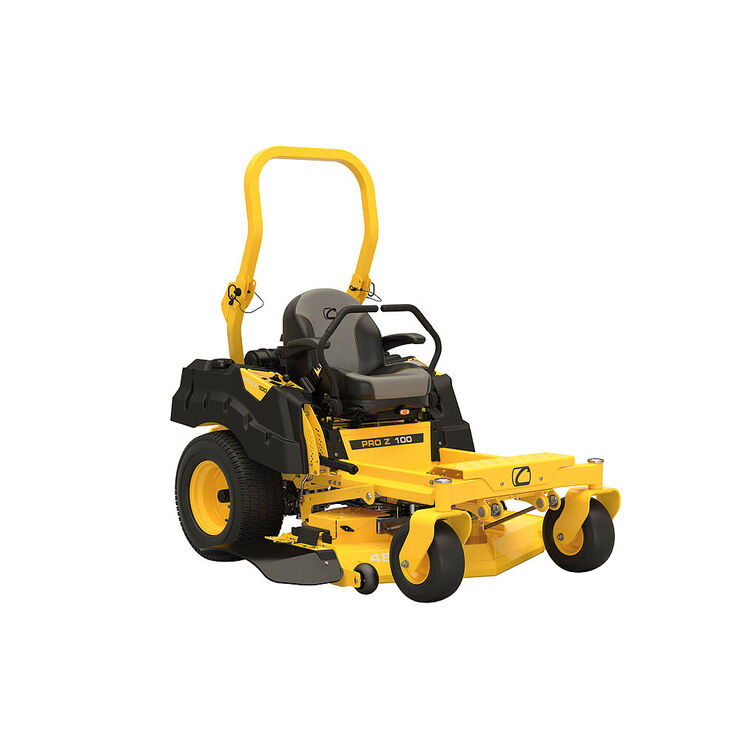

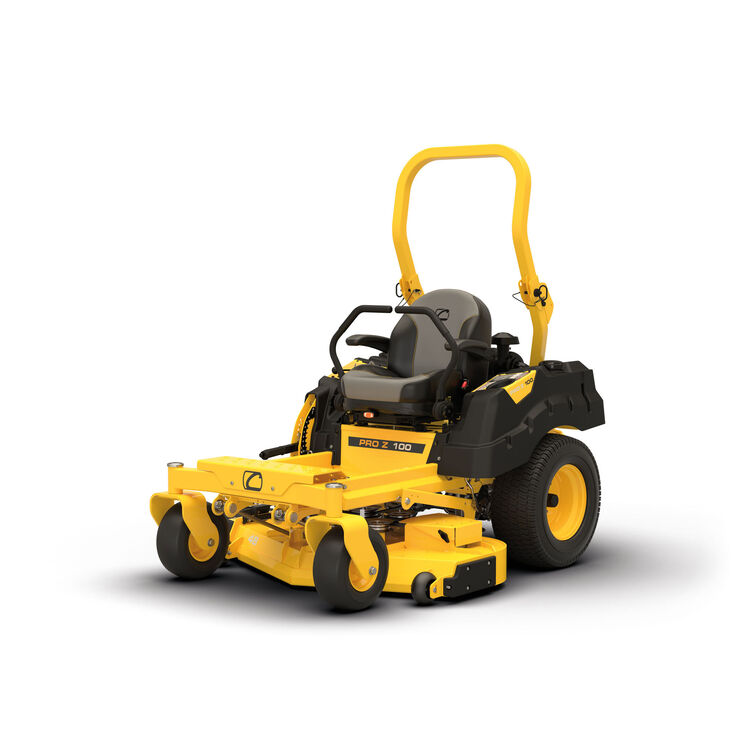

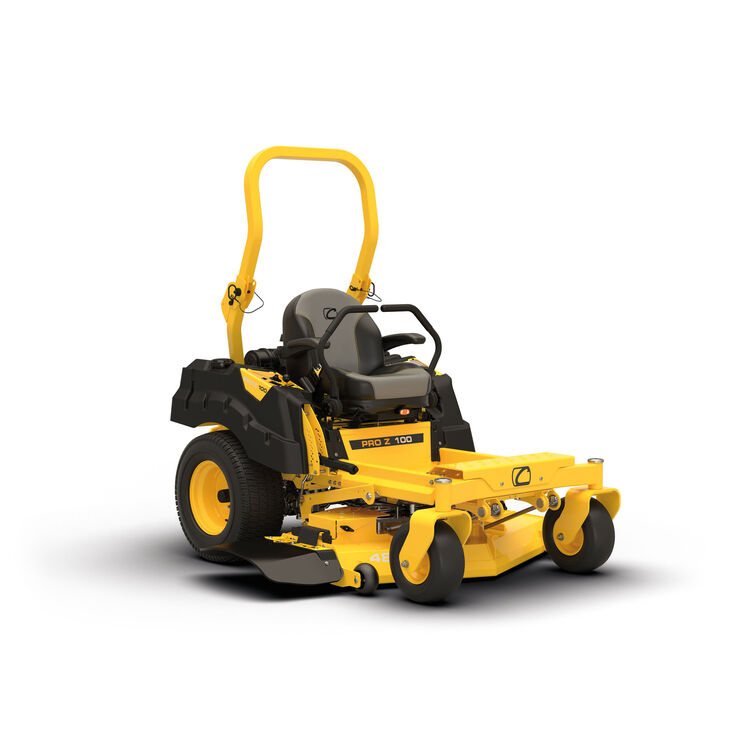

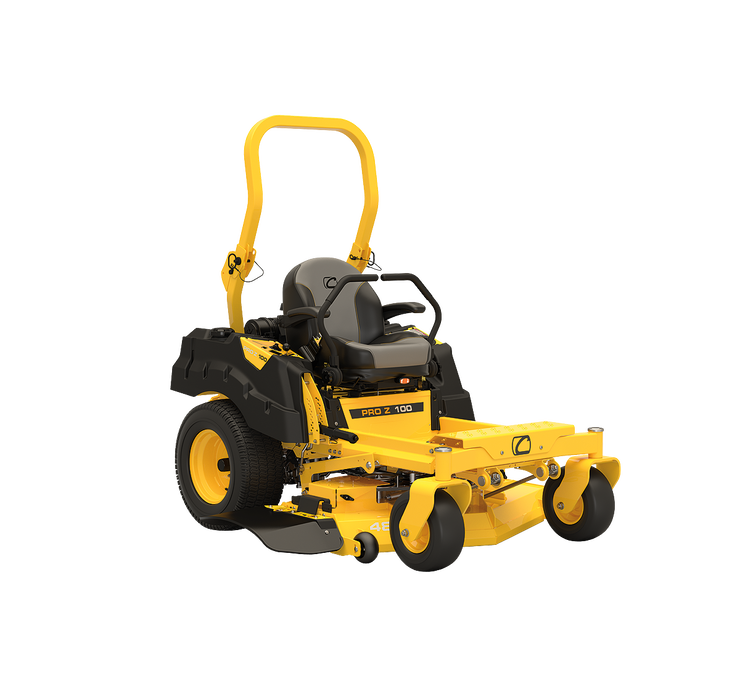

PRO Z 148 L EFI
PRO Z 100 L SERIES
Item#:
53TWEHRF050
From
$ 9,899.00
MSRP
PRO Z 148 L EFI
PRO Z 100 L SERIES
Item#:
53TWEHRF050
- 25 HP Kohler® Confidant® EFI EZT-740, 747cc Engine
- 2-year limited commercial warranty (no hour limitations) or 4-year/500-hour limited residential warranty
- 48" heavy-duty fabricated sloped nose triple blade w/10 gauge deck
You're shopping available inventory from
Specs & Maintenance
Engine
- Engine Brand Kohler® Confidant® EFI EZT-740 V-Twin OHV
- Engine Model Confidant EFI EZT-740
- Engine Displacement 25 HP, 747cc
- Fuel Tank Capacity Dual tanks 3.5 US gal. (13.25 L) / 7 US gal. total (26.5 L) with over-sized fuel opening
- Cylinders 2/cast-iron sleeve
- Engine Start Electric
- Engine Oil Capacity 2 US qt. / 1.90 L
- Lubrication Full-pressure with spin-on oil filter
- Charging System 15 amp. regulated
- Fuel Gauge Standard (sight window in tank)
- Air Cleaner Heavy-duty canister air cleaner
Battery
- Battery Voltage 12V/heavy-duty 230 cold crank amp.
Drive System
- Transmission Dual Hydro-Gear® ZT-3400 charged - 12cc pumps and 16cc wheel motor design
- Forward Speed 9.5 mi/h (15.3 km/h)
- Reverse Speed 0 - 4.5 mi/h (7.2 km/h)
- Drive System Heavy duty Kevlar® belt
Cutting Deck
- Deck Cutting Width 48''
- Deck Material Fabricated
- Deck Engagement (PTO) Electronic fingertip engagement
- Deck Construction Fabricated slope nose -10 gauge shell, floating, fabricated w/7 gauge reinforced plate
- Blade(s) Triple Blade
- Deck Lift Hand lever adjustment with spring assist
- Cutting Height Range 1" - 5" (in .25" increments)
- Anti-Scalping 2 front heavt-duty with bushings and grease zerk
Chassis
- Frame 2.5" x 4.5" Heavy-duty reinforced full length steel frame with ROPs pockets welded in / automotive-grade corrosion defense system
- Front Axle Heavy-duty 2" x 3" fabricated steel, greasable tapered roller bearings
- ROPS 2"X2" foldable 3 position low profile clearance
- Bumper Standard
- Rear Tow Hitch Standard
Controls
- Handle 3/4 length padded bars w/ tool less quick adjust dial
- Brakes Integrated parking brake in lap bars
- Steering Control Quick adjust twin levers (no tools required) with comfort grips, lap bar dampeners
Comfort
- Seat Type High-Back Suspension Seat with Seat Belt, Adjustable Arm Rests and 6" Seat Travel
Wheels
- Rear Tires 23" x 10.5" -12" Carlisle Turf Master
- Front Tires 13" x 6.5" - 6"
- Tire Tread Zero
Dimensions
- Weight (approx.) 1,000 lbs.
- Wheelbase 47"
Additional Specifications
- Discharge Chute High-density, impact-resistant rubber
- Cup Holder Intergrated into Side Pod
- Model Number 53TWEHRF050
Warranty
- Residential Warranty 4-year/500 hour limited residential warranty
- Commercial Warranty 2-year limited commercial warranty (no hour limitations)
Model | Manual | Form Number | |
|---|---|---|---|
| 53TWEHRF050 | MANL:OPER:ENGL:CC PRO Z 100 | ||
| MANL:OPER:ENGL:CC PRO Z 100 | 769-12379 | Download | |
| MANL:OPER:ENGL:CC PRO Z 100 S | 769-17790 | Download | |
| MANL:OPER:FRENCH ONLY:CC PRO Z 100 | 769-12379_FR | Download | |
| SHEET:SUP:BILING:EPA:EVP:06301 | 769-15171 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-17171 | Download |
